5 HOME PAGE RESOURCE & REPRESENTATION

The 'home page' is a well-known resource which acts as the starting point for any client. From it all other resources may be discovered.

5.1 HTTP GET

Obtain the representation of the home page resource.

The endpoint URL for this resource is:

/

(in other words the base directory).

5.1.1 Request

5.1.1.1 Query String [1]

None

5.1.1.2 Headers

  • Accept

    • application/json

    • application/json;profile=…/homepage

5.1.1.3 Body

  • N/A

5.1.2 Successful Response

5.1.2.1 Status Code

  • 200 "OK"

5.1.2.2 Headers

  • Content-Type

    • application/json;profile="…​/homepage"

  • Caching headers:

    • NON_EXPIRING, see §A2.13

      since home page changes only on redeployment

5.1.2.3 Body

As per §B5.2.

5.2 Representation

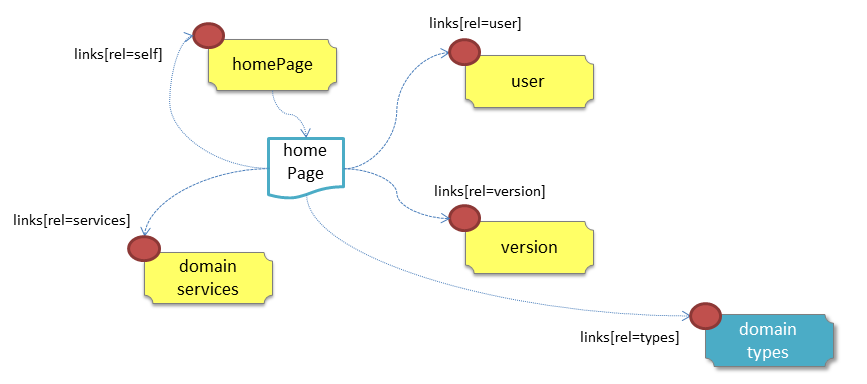

The links from the home page representation to other resources are as shown in the diagram below:

Slide2
Figure 1. HOME PAGE REPRESENTATION

The link to the domain types resource is only present if the formal scheme (§A3.1.2) capability is supported.

The JSON representation is as follows:

{
  "links": [ {
      "rel": "self",
      "href": "http://~/",
      "type": "application/json;profile=\".../homepage\"", "method": "GET"
    }, {
      "rel": ".../user",
      "href": "http://~/user",
      "type": "application/json;profile=\".../user\"",
      "method": "GET"
    }, {
      "rel": ".../services",
      "href": "http://~/services",
      "type": "application/json;profile=\".../list\"",
      "method": "GET"
    }, {
      "rel": ".../version",
      "href": "http://~/version",
      "type": "application/json;profile=\".../version\"",
      "method": "GET"
    }, {
      "rel": ".../domain-types",
      "href": "http://~/domain-types",
      "type": "application/json;profile=\".../type-list\"",
      "method": "GET"
    }, ...
  ],
  "extensions": {
    ...
  }
}

where:

JSON-Property Description

links

list of links to resources.

link[rel=self]

link back to the resource that generated this representation.

link[rel=…/user]

link to the user resource §B6

link[rel=…/services]

link to the services resource §B7

link[rel=…/version]

link to the version resource §B8

link[rel=…/types]

link to the domain types resource §D21

extensions

additional information about the resource.

Restful Objects defines no standard json-properties for "extensions". Implementations are free to add to their own links/json-properties to "links" and "extensions" as they require.
