26 DOMAIN TYPE ACTION PARAMETER DESCRIPTION RESOURCE
The domain action parameter description resource represents a description of a parameter of an action on a domain type, within the metamodel.
Clients can use the domain action parameter description representations as hints when building a UI. For example, there will be links back to the domain type representing each of the action parameter return types; this might be used in order to select the appropriate widgets when building a UI. Or, the client can use information in the representation to apply client-side validation of declarative semantics (for example, mandatory parameters, or regex patterns).
The endpoint URL for this resource is:
/domain-types/{domainType}/actions/{actionId}/params/{paramName}
where:
-
{domainType}is either-
the domain type id, or
-
is a built-in JSON type
-
-
{actionId}identifies the action -
{paramName}is the named action parameter
26.1 HTTP GET
26.2 Representation

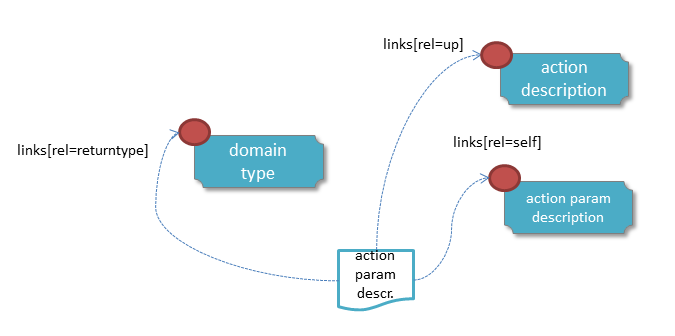

The links from the domain action parameter description representation to other resources are as shown in the diagram below:
The JSON representation returned (for example, if the Order's submit(…) action’s first parameter is a shipMethod string parameter) might look something like:
{
"id": "submit-shipMethod",
"number": 0,
"name": "shipMethod",
"friendlyName": "Ship Method",
"description": ...,
"optional": false,
"format": ..., (1)
"maxLength": ..., (1)
"pattern": ..., (1)
"links": [ {
"rel": "self", ...
}, {
"rel": "up",
"href": "http://~/domain-types/ORD/actions/submit",
"type":"application/json;profile=\".../action-description\"",
"method": "GET"
}, {
"rel": ".../returntype",
"href": "http://~/domain-types/string",
"type": "application/json;profile=\".../domain-type\"",
"method": "GET"
}, {
"rel": "help",
"href": "http://~/videos/training/Order-submit-shipMethod.mpg ",
"type": "audio/mpeg",
"method": "GET"
}, ...
],
"extensions": { ... }
}| 1 | for string params only |
where:
| JSON-Property | Description |
|---|---|
links |
list of links to other resources. |
links[rel=self] |
link to a resource that can obtain this representation |
id |
the Id of this action parameter (typically a concatenation of the parent action Id with the parameter name) |
name |
the name of the parameter number the number of the parameter (starting from 0) |
friendlyName |
the action parameter name, formatted for rendering in a UI. |
description |
a description of the action parameter, e.g. to render as a tooltip. |
optional |
indicates whether the action parameter is optional |
maxLength |
for string action parameters, indicates the maximum allowable length. A value of 0 means unlimited. |
pattern |
for string action parameters, indicates a regular expression for the property to match. |
format |
for action parameters requiring a string or number value, indicates how to interpret that value §A2.5. |
links[rel=up] |
link to the action that owns this parameter |
links[rel=…/return-type] |
link to the action parameter’s return type |
links[rel=help] |
(optional) link to a media resource providing help about the action parameter |
extensions |
map of additional information about the resource. |
