24 DOMAIN TYPE COLLECTION DESCRIPTION RESOURCE
The domain collection description resource represents a description of a domain collection, within the metamodel.
Clients can use the domain collection description’s representation as hints when building a UI. For example, there will be links back to the domain type representing the collection’s element type; this can be used by a client to determine columns for a table view. Or, the client can use information in the representation in order to apply client-side validation of declarative semantics (for example, minimum or maximum cardinality of a collection).
The endpoint URL for this resource is:
/domain-types/{domainType}/collections/{collectionId}
where:
-
{domainType}is either-
the domain type id, or
-
is a built-in JSON type
-
-
{collectionId}identifies the collection.
24.1 HTTP GET
24.2 Representation

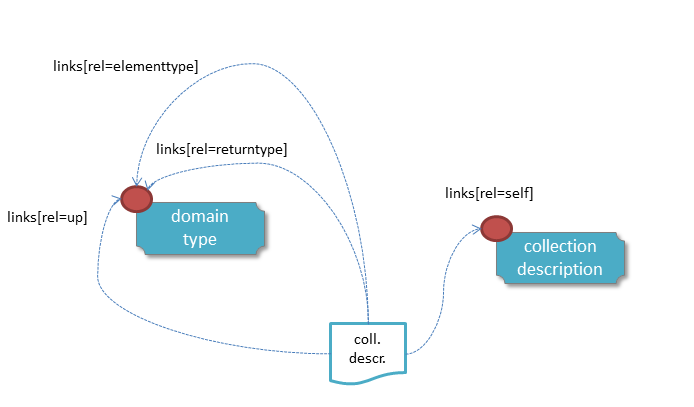

The links from the domain collection description representation to other resources are as shown in the diagram below:
The JSON returned representation (for the Order’s items collection) might look something like:
{
"id": "items",
"friendlyName": "items",
"plural form": "Order items",
"description": "Line items (details) of the order",
"memberOrder": 3,
"links": [ {
"rel": "self", ...
}, {
"rel": "up",
"href": "http://~/domain-types/ORD",
"type": "application/json;profile=\".../domain-type\"",
"method": "GET"
}, {
"rel": ".../returntype",
"href": "http://~/domain-types/list",
"type": "application/json;profile=\".../domain-type\"",
"method": "GET"
}, {
"rel": ".../elementtype",
"href": "http://~/domain-types/ORI",
"type": "application/json;profile=\".../domain-type\"",
"method": "GET"
}, {
"rel": "help",
"href": "http://~/videos/training/Order-items-explained.mpg",
"type": "audio/mpeg",
"method": "GET"
}, ...
],
"extensions": { ... }
}where:
| JSON-Property | Description |
|---|---|
links |
list of links to other resources. |
links[rel=self] |
link to a resource that can obtain this representation |
id |
the Id of this collection friendlyName the collection name, formatted for rendering in a UI. |
pluralForm |
the pluralized form of the element type within the collection/list. |
description |
a description of the collection, e.g. to render as a tooltip. |
memberOrder |
a presentation hint as to the relative order to display each member |
links[rel=up] |
link to the domain type which owns this property |
links[rel=…/return-type] |
link to the domain type for list or for set. |
links[rel=…/element-type] |
link to the domain type of the objects contained in the collection |
links[rel=help] |
(optional) link to a media resource providing help about the property |
extensions |
additional information about the resource. |
